In Senegal, our company recently installed an 80kW commercial off-grid solar system for a local business. The system consists of 128 solar panels with a capacity of 450W each and a battery bank with a capacity of 19200Ah.

Configuration Details
Product Name	Specifications	Quantity	Remark
Solar Panel	Monocrystalline 450W	128	16pcs in series，8 groups in parallel
Three Phase Solar inverter	384VDC 80KW	1	HDSX-803384
Solar Charge Controller	384VDC 100A	2	MPPT Solar Charge Controller
Lead acid battery	12V200AH	96	32in series，3 groups in parallel
Battery connecting cable	50mm² 60CM	96	connection between batteries
solar panel mounting bracket	Aluminum	16	Simple type
PV combiner	2in1out	4	Specifications：1000VDC
Lightning protection distribution box	without	0
battery collecting box	200AH*32	3
M4 plug (male and female)		120	120 pairs 1 in 1 out
PV Cable	4mm²	300	PV Panel to PV combiner
PV Cable	10mm²	200	PV combiner to MPPT
Battery cable	50mm² 10m/pcs	41	Solar Charge Controller to battery and PV combiner to Solar Charge Controller
Package	wooden case	1

The off-grid solar system is perfect for businesses located in areas without access to the grid or experiencing frequent power outages. The system provides reliable and sustainable power, even during periods of low sunlight or at night.

The battery bank stores excess energy generated by the solar panels during the day and discharges it at night or during periods of high energy demand. This ensures that the business has a stable and consistent source of power throughout the day and night.

Our team of experienced technicians conducted a thorough site survey and designed a customized system that met the specific needs of the business. We also provided training on how to use and maintain the system to ensure long-term efficiency and productivity.

The commercial off-grid solar system has significantly reduced the energy costs for the business and provided a reliable source of power. The installation of the system has also contributed to reducing carbon emissions and improving the environment.

Overall, this 80kW commercial off-grid solar system serves as an excellent example of how renewable energy systems can be used to meet the energy needs of businesses in Senegal. It showcases the potential for solar energy and battery storage to drive economic growth, social progress, and environmental sustainability.

Our company is committed to promoting clean energy solutions and helping businesses achieve their goals while reducing their carbon footprint. Contact us today to learn more about our off-grid solar system solutions!

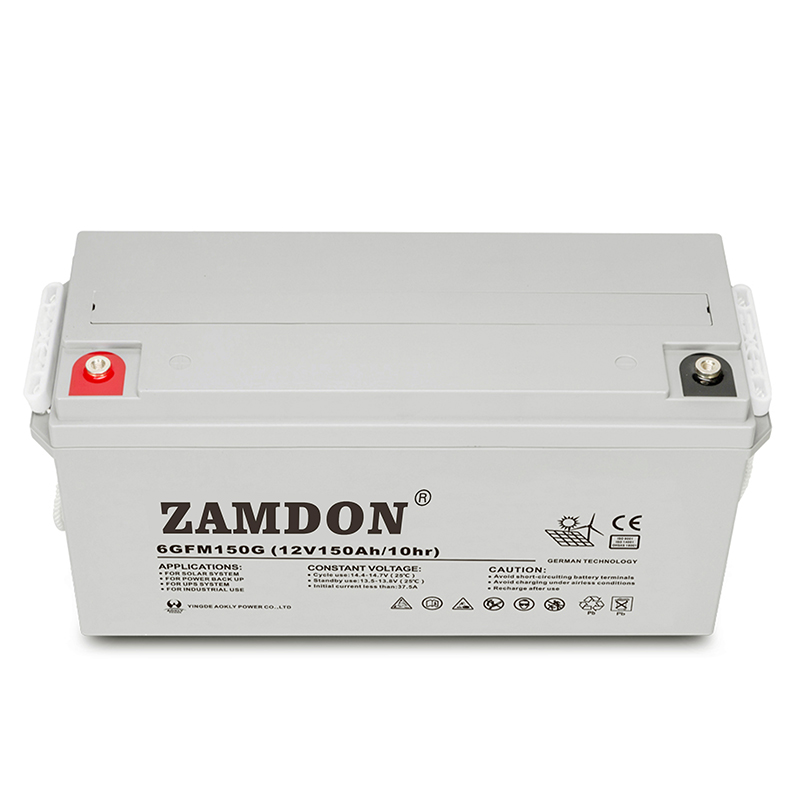

12V150AH Deep Cycle Gel Battery Manufacturer Supplier For Solar
